0.99inch IPS long strip LCD screen | 40×160 resolution GC9D01 driver, high definition and wide viewing angle, special for industrial equipment status

Brand Name : HuaXin

Model Number : HX099FHD010

Certification : ISO14001/ ISO9001/IATF16949

Place of Origin : China

MOQ : 1000

Price : $1-$1.5

Payment Terms : T/T

Supply Ability : 500K pcs per month

Delivery Time : 4~6weeks

Packaging Details : blister+foam box+bubble bag+inside carton+master carton

Display Technology : TFT module

Name : tft panel

Display size : 0.99 inch

Resolution : 40*160

interface : 4 LINE MIPI

Driving IC : GC9D01

Brightness : 220C/D

view angle : all

Contact Now

【0.99-inch Long Strip IPS Screen】40×160 Resolution, High-Definition Wide Viewing Angle, GC9D01 Driver Chip. Suitable for Industrial Dashboards / Smart Wear Status Bars / Device Data Bars. Low Power Consumption, Easy to Integrate.
Key Specifications
Display Technology TFT module
Display Size 0.99 inch
Resolution 40×160
Interface
4 LINE SPI
Driving IC
GC9D01
Brightness 220C/D
View Angle All
Technical Parameters
Part No. HX099FHD010
Display Mode 0.99 inch TFT display
Outline Size (mm)
8.6(H)*29.8(V)*1.5(D) mm
AA Size (mm)
6.096(H)*24.384(V) mm
Working Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C

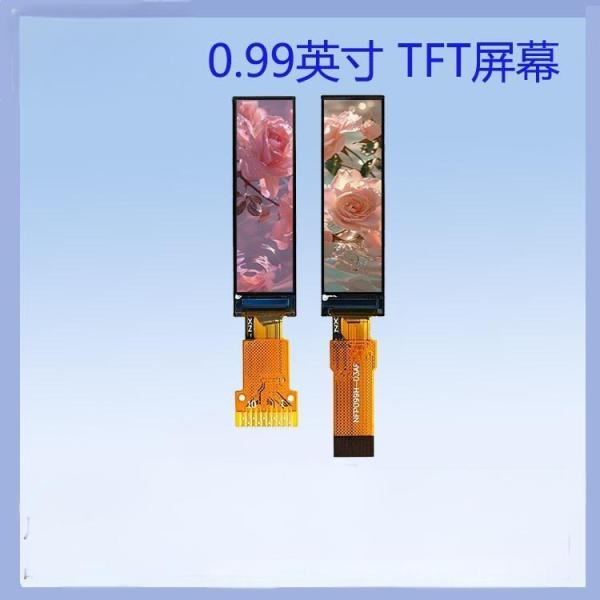

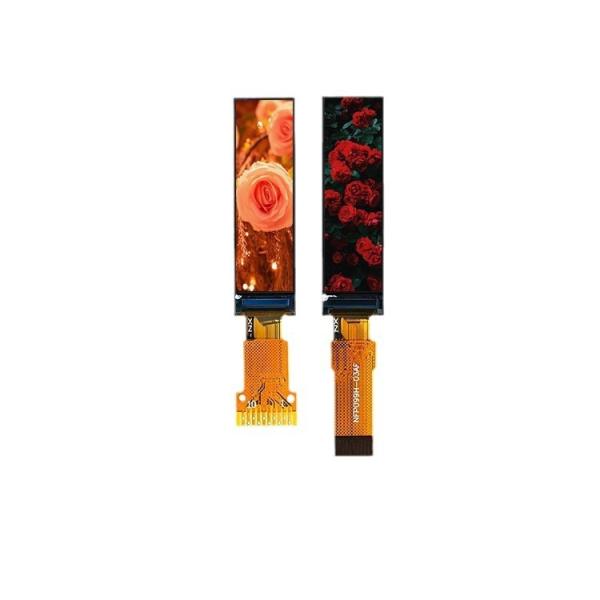

Product Images

0.99inch IPS long strip LCD screen | 40×160 resolution GC9D01 driver, high definition and wide viewing angle, special for industrial equipment status
0.99inch IPS long strip LCD screen | 40×160 resolution GC9D01 driver, high definition and wide viewing angle, special for industrial equipment status
0.99inch IPS long strip LCD screen | 40×160 resolution GC9D01 driver, high definition and wide viewing angle, special for industrial equipment status
0.99inch IPS long strip LCD screen | 40×160 resolution GC9D01 driver, high definition and wide viewing angle, special for industrial equipment status
TFT Product Knowledge

0.99inch IPS long strip LCD screen | 40×160 resolution GC9D01 driver, high definition and wide viewing angle, special for industrial equipment status
Manufacturer Advantages
  • Cost-effective factory location in inland city
  • Advanced equipment ensuring stable quality
  • Automated processes for efficiency and consistency
  • Experienced engineering team with 20+ years in LCD field
  • Custom design capabilities
About Huaxin Technology (Enshi) Co., LTD

Located in Hubei Enshi, founded in 2009. High-tech enterprise specializing in LCD, LCM, TFT, backlight, and OLED research, development, and production.

Product Range
  • VA, TN, HTN, STN, FSTN, CSTN LCD series
  • COB, TBA, COG, TP, LED backlight LCM series
Company Details
Registered capital 20 million
Staff 500+ (10% R&D, 15% QC)
Certifications ISO14001, ISO9001/IATF16949, SGS
Production Capacity (k/Day)
Product 2021 2022 2023 2024 2025
LCD 4.5 9 9 9 9
LCM 70 150 300 450 450
Backlight 100 200 300 500 500
OLED 10 20 30 40 50
Applications
  • Car navigation & printers
  • Video calls & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control & home appliances
TFT Display Characteristics
  • Excellent image quality with high resolution and color accuracy
  • Fast response times for smooth transitions
  • Wide viewing angles with minimal color shift
  • Energy efficient operation
  • Available in various sizes for different applications
  • LED backlighting for consistent illumination
TFT Display Limitations
  • Viewing angles may be limited compared to other technologies
  • Moderate contrast ratios
  • Backlighting increases power consumption
  • Potential motion blur in fast-moving content
  • Limited flexibility in physical form
  • Color gamut may be narrower than some alternatives
