2.86 Inch Bar Type TFT, 480x640 30pins MIPI Interface , 400cd/M2 TFT Display Panel

Product Categories
HuaXin Technology CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

2.86 Inch Bar Type TFT, 480x640 30pins MIPI Interface , 400cd/M2 TFT Display Panel

Brand Name : HuaXin

Model Number : HX286001B0

Certification : ISO14001/ ISO9001/IATF16949

Place of Origin : China

MOQ : 1~1000

Price : $7.5~$7.1

Payment Terms : T/T

Supply Ability : 500K pcs per month

Delivery Time : 4~6weeks

Packaging Details : blister+foam box+bubble bag+inside carton+master carton

Display Technology : bar type tft display

Name : bar type tft

Display size : 2.86 inch tft

Resolution : 480*3RGB(H)X640(V)

interface : MIPI

Brightness : 400c/d

View angle : all

Contact Now

HX286001B0 is 2.86 inch bar type TFT LCD , 480x640 resolution, 30 pins mipi interface. brightness is 400cd/m2 and view angle is free and Module Driver IC is ST7701S
Key Specifications
ITEMSpecification
Model NumberHX286001B0
size2.86
LCD TypeNormally Black
Drive elementTFT active matrix
Number of pixels480*3RGB(H)X640(V)
Pixel arrangementRGB stripe
Pixel Pitch (W*H)0.0235*0.0705
Active area26.508*67.68
Mechanical OutlineSize(W*H*T)31.2*76.2*2.05
Viewing directionALL O’CLOCK
IC/LCM Driver ICST7701S
LCM interfaceMIPI BIT Interface
Lcm pin count30
Backlight leds4
Backlight current80
Backligh voltage2.8-3.3
operating temperature-20~70
storage temperature-30~80
Luminance400

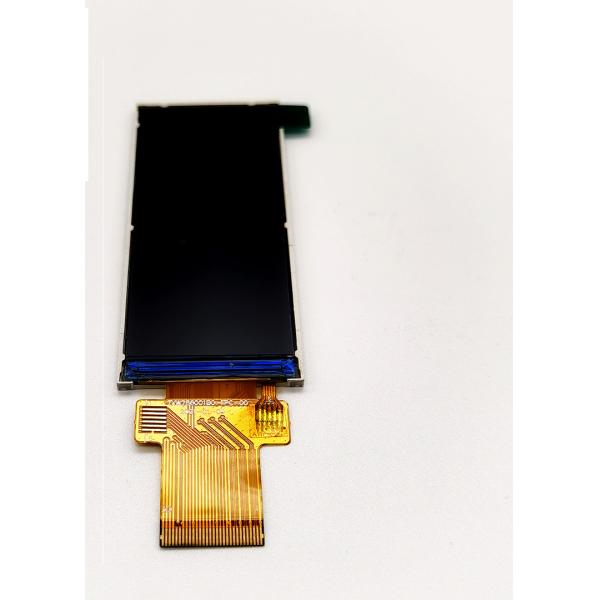

Product Images

2.86 Inch Bar Type TFT, 480x640 30pins MIPI Interface , 400cd/M2 TFT Display Panel

2.86 Inch Bar Type TFT, 480x640 30pins MIPI Interface , 400cd/M2 TFT Display Panel

2.86 Inch Bar Type TFT, 480x640 30pins MIPI Interface , 400cd/M2 TFT Display Panel

2.86 Inch Bar Type TFT, 480x640 30pins MIPI Interface , 400cd/M2 TFT Display Panel


Technical Drawings
2.86 Inch Bar Type TFT, 480x640 30pins MIPI Interface , 400cd/M2 TFT Display Panel 2.86 Inch Bar Type TFT, 480x640 30pins MIPI Interface , 400cd/M2 TFT Display Panel
TFT Display Characteristics
  • Excellent image quality with high resolution, sharpness, and color accuracy
  • Fast response time for smooth motion display
  • Wide viewing angles with minimal color shift
  • Energy efficient with lower power consumption
  • Available in various sizes from small to large panels
  • LED backlighting for uniform illumination
  • Versatile applications across multiple industries
Product Applications
  • Car navigation systems & printers
  • Video communication & digital advertising
  • Automotive displays & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
Company Advantages
  • Cost-effective operations with inland factory location
  • Advanced equipment ensuring stable product quality
  • Fully automated production processes
  • Professional engineering team with 20+ years experience
  • In-house design capability for customized solutions
Certifications
  • ISO14001 Environmental Management
  • ISO9001/IATF16949 Quality Management
  • SGS certified LCD modules
Company Profile
Huaxin Technology (Enshi) Co., LTD
Location: Hubei, Enshi | Founded: 2009
Specialization: Research, development, production and sales of LCD, LCM, TFT, backlight, and OLED products
Product Range
  • LCD: VA, TN, HTN, STN, FSTN, CSTN and other series
  • LCM: COB, TBA, COG, TP, LED backlight and other series
Registered Capital: 20 million | Employees: 500+
R&D: 10% of workforce | Quality Control: 15% of workforce
Production Capacity
Annual Production Capacity20212022202320242025Unit
LCD Production4.59999Thousands/Day
LCM Production70150300450450Thousand pieces/Day
Backlight Production100200300500500Thousand pieces/Day
OLED Production1020304050Thousand pieces/Day
