Square 0.96 Inch OLED Display 96x96 Resolution 12PIN SSD1317 Driver Serial Port Screen

Name: Square 096 Inch OLED Display 96x96 Resolution 12PIN SSD1317 Driver Serial Port Screen
Brand: HuaXin
Price: 0.98 USD

Quality Square 0.96 Inch OLED Display 96x96 Resolution 12PIN SSD1317 Driver Serial Port Screen for sale

Brand Name : HuaXin

Model Number : HX09696XYJ

Certification : ISO14001/ ISO9001/IATF16949

Place of Origin : China

MOQ : 1000

Price : $0.98

Payment Terms : T/T

Supply Ability : 500K pcs per month

Delivery Time : 4~6weeks

Packaging Details : blister+foam box+bubble bag+inside carton+master carton

Display Technology : PMOLED sccreen

name : PMOLED display

Resolution : 96*96

size : 0.96 inch

Color : white

Interface : 4-wireSPI

Driving IC : SSD1317

Contact Now

0.96-inch OLED Display | 96x96 Square Screen, 12PIN Welding, SSD1317 Driver, Serial Port Screen

Product Overview

Compact 0.96-inch square PMOLED display with 96x96 resolution, featuring 12-pin welding, SSD1317 driver, and serial port interface. Ideal for smart sensors, DIY devices, and miniature electronics with its low power consumption and high contrast ratio.

Technical Specifications

Attribute	Value
Display Technology	PMOLED screen
Resolution	96×96
Size	0.96 inch
Color	White
Interface	4-wire SPI
Driving IC	SSD1317
Part Number	HX09696XYJ
Viewing Angle	Free
Active Area	17.26×17.26mm
Module Size	20.50(W)×23.80(H)×1.20(D)mm
Operating Temperature	-40°C to 70°C
Pin Quantity	12 PINS

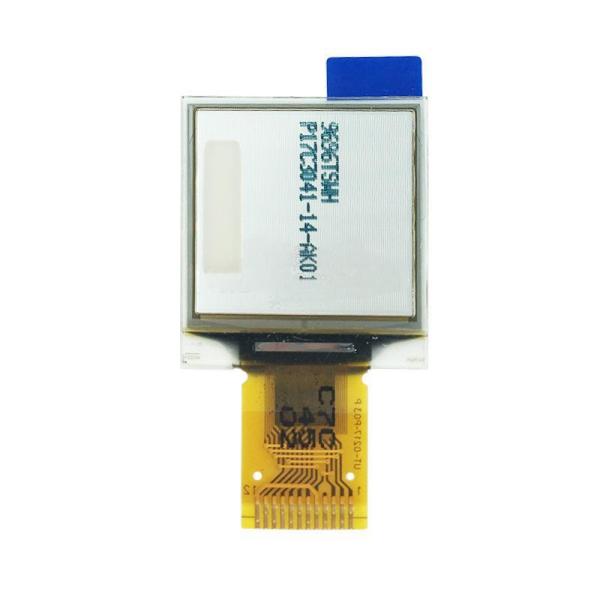

Product Images

Square 0.96 Inch OLED Display 96x96 Resolution 12PIN SSD1317 Driver Serial Port Screen

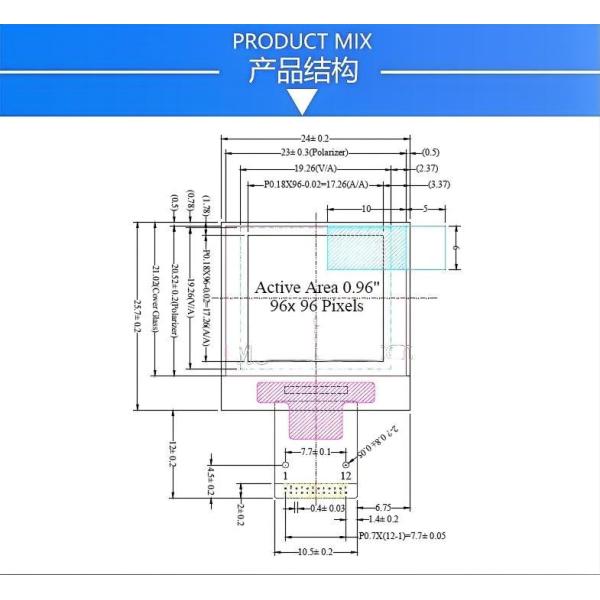

Technical Drawings

OLED Technology Overview

Advantages

Lighter and thinner than LCD displays
High contrast ratio and color saturation
Lower power consumption
Each pixel emits its own light for true blacks

PMOLED Characteristics

Passive matrix addressing scheme
High contrast and vibrant colors without backlight
Power efficient - only active pixels consume energy
Thin and flexible substrate options
Ideal for small to medium-sized displays

Applications

Wearable devices
Portable audio players
Thermostats and home automation
Car dashboards and instrument clusters
Medical devices
Consumer electronics
Industrial and professional equipment

Manufacturer Information

Huaxin Technology (Enshi) Co., LTD is a high-tech enterprise specializing in LCD, LCM, TFT, backlight, and OLED research, development, and production since 2009.

Company Advantages

Cost-effective inland manufacturing base
Advanced equipment for stable quality
Automated production processes
20+ years of industry experience
Custom design capabilities

Certifications

ISO14001
ISO9001/IATF16949
SGS certified LCD modules

Production Capacity

Product	2021	2022	2023	2024	2025	Unit
LCD	4.5	9	9	9	9	Thousands/Day
LCM	70	150	300	450	450	Thousand/Day
Backlight	100	200	300	500	500	Thousand/Day
OLED	10	20	30	40	50	Thousand/Day
